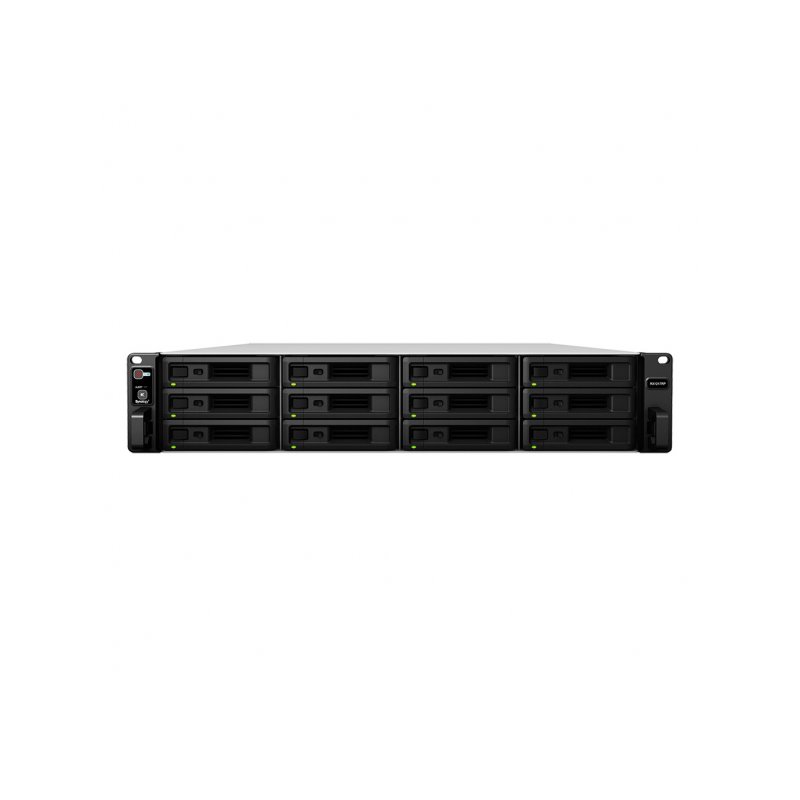

Synology NAS RX1217RP 19 Expansionseinheit 12fach RX1217RP

Synology RX1217RP. Supported storage drive types HDD.SSD. Maximum supported storage capacity 168 TB. Supported storage drive interfaces Serial ATA.Serial ATA II.Serial ATA III. Chassis type Rack (2U). Product colour Black. Gray. Number of fans 3 fan(s). Compatible products Synology RS3617xs. Power supply unit (PSU) capacity 500 W. Power consumption (typical) 71.32 W. AC input voltage 100-240 V. Width 430.5 mm. Depth 692 mm. Height 88 mm Ports & interfaces

InfiniBand Y USB connectivity N

Design

Number of fans 3 fan(s) Product colour Black. Gray Certification FCC A. CE A. BSMI A Noise level 54.2 dB Chassis type Rack (2U) RoHS compliance Y

Storage

Supported storage drive types HDD.SSD Installed storage drive type N Hot-swap drive bays Y Supported storage drive interfaces Serial ATA.Serial ATA II.Serial ATA III Storage drives installed N Data transfer rate 6 Gbit/s Number of storage drives supported 12 Maximum supported storage capacity 168 TB

Weight & dimensions

Depth 692 mm Weight 13.4 kg Height 88 mm Width 430.5 mm

Packaging content

Cables included AC.InfiniBand

Operational conditions

Storage temperature (T-T) -20 - 60 °C Operating temperature (T-T) 5 - 35 °C Operating relative humidity (H-H) 5 - 95 %

Performance

Compatible products Synology RS3617xs

Power

Redundant power supply (RPS) support Y AC input frequency 50 - 60 Hz Power supply unit (PSU) capacity 500 W Number of power supply units 2 AC input voltage 100-240 V Power consumption (typical) 71.32 W
